ガソリン機関
手動クラッチ125cc 4の打撃のガソリンエンジンは、8000rpm空気ガソリン機関を冷却した
YBR 125CC Gasoline Balance Engine Air Cool Manual Clutch Electric/Kick Start Details: Technical Parameter Engine Model 154FMI-5 Engine Name YBR125 Engine Type Single Cylinder, 4 Stroke, AIR cool, Camshaft upward Balance shaft Displacement(ml) 124 Dimension(mm) 380*305*381 Net Weight(kg) 25.5 Max.Power(kw/rpm) 7.1/8000 Max. Torque(N.m/rpm) 9.5/6500 Compression Ratio 10:1 Bore and Stroke(mm) 54*54 Ignition Type CDI Lubrication Type Pressure Splash Min. Fuel Consumption(g/kw.h)
単一シリンダー124ccガソリン機関横の水空気によって冷却されるキック スタートのオートバイ エンジン
YX125EA 124CC Gasoline Racing Engine Air/Oil Cool Kick Start Horizontal Details: Technical Parameter Engine Model 153FMI Engine Name S97 Engine Type Single Cylinder, 4 Stroke, Cool/Oil cool, Horizontal Displacement(ml) 124 Dimension(mm) 460*300*200 Net Weight(kg) 20 Max.Power(kw/rpm) 86.8/8000 Max. Torque(N.m/rpm) 10.2/7500 Compression Ratio 10.0:1 Bore and Stroke(mm) 52.4*57 Ignition Type CDI Lubrication Type Pressure Splash Min. Fuel Consumption(g/kw.h) ≤367 Starting Type
140ccオイルはオートバイ エンジン8.2kwの横のガソリンの競争を冷却した
YX140 140CC Horizontal Gasoline Engine For Racing Motorcycle Oil Cool Kick Start Details: Technical Parameter Engine Model 1P56FMJ Engine Name 140CC Engine Type Single Cylinder, 4 Stroke, Oil cool, Horizontal Displacement(ml) 140 Dimension(mm) 460*300*200 Net Weight(kg) 20 Max.Power(kw/rpm) 8.2/8000 Max. Torque(N.m/rpm) 10.2/7500 Compression Ratio 9.8:1 Bore and Stroke(mm) 56*57 Ignition Type CDI Lubrication Type Pressure Splash Min. Fuel Consumption(g/kw.h) ≤367 Starting
125cc 9kwのガソリン機関7000rpm単一シリンダー ガソリン
YX125M 125CC Gasoline Engine Auto Clutch Electric Start Air Cool Details: Technical Parameter Engine Model 1P52FMI Engine Name W125P Engine Type Single Cylinder, 4 Stroke, Air Cool, Horizontal Displacement(ml) 124.9 Dimension(mm) 460*300*260 Net Weight(kg) 21.5 Max.Power(kw/rpm) 6.5/7000 Max. Torque(N.m/rpm) 9.0/500 Compression Ratio 8.8:1 Bore and Stroke(mm) 52.4*57.9 Ignition Type CDI Lubrication Type Pressure Splash Min. Fuel Consumption(g/kw.h) ≤367 Starting Type Electric

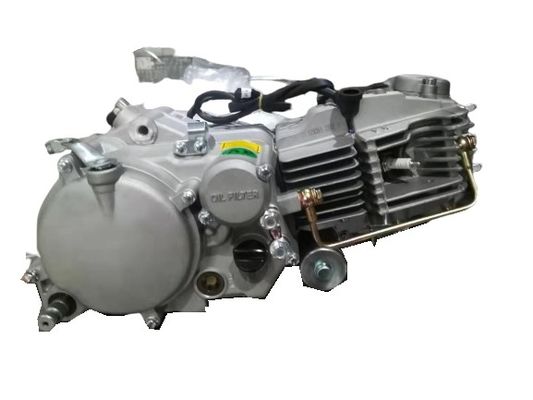

エンジン4ギヤ9500rpmキック スタート モーターを競争させる9.6kw 150ccのオートバイ
YX150 150CC Gasoline Engine For Racing Motorcycle Kick Start Oil Cool 4 Gear Details: Technical Parameter Engine Model 1P56FMJ-5 Engine Name 150CC Engine Type Single Cylinder, 4 Stroke, Oil cool, Horizontal Displacement(ml) 147.8 Dimension(mm) 460*300*200 Net Weight(kg) 21 Max.Power(kw/rpm) 9.6/9500 Max. Torque(N.m/rpm) 11/7000 Compression Ratio 9.9:1 Bore and Stroke(mm) 56*60 Ignition Type CDI Lubrication Type Pressure Splash Min. Fuel Consumption(g/kw.h) ≤367 Starting Type
250ccガソリン機関手動クラッチ、空気によって冷却されるキック スタート エンジン
CB250-F 250CC Gasoline Engine Air Cool Manual Clutch Electric/Kick Start 5 Gear Details: Technical Parameter Engine Model ZS172FMM-3A Engine Name CB250-F Engine Type Single Cylinder, 4 Stroke, AIR cool, Camshaft upward Displacement(ml) 249.9 Dimension(mm) 303*324*429 Net Weight(kg) 32 Max.Power(kw/rpm) 14/8500 Max. Torque(N.m/rpm) 18/6500 Compression Ratio 9.25:1 Bore and Stroke(mm) 72*61.4 Ignition Type CDI Lubrication Type Pressure Splash Min. Fuel Consumption(g/kw.h) ≤354
50cc 70ccのガソリン機関110CCの自動クラッチの空気は100ccガソリンを冷却した
YX110 50CC 70CC 100CC 110CC Gasoline Engine Air Cool Automatic Clutch Details: Technical Parameter Engine Model 1P39FMA-3 1P47FMD-2 147FMF 150FMG 1P53FMH-2 Engine Name 50CC 70CC 90CC 100CC 110CC Engine Type Single Cylinder, 4 Stroke, Air cool, Horizontal Displacement(ml) 49.4 71.8 86 97 106.7 Dimension(mm) 460*300*260 Net Weight(kg) 21 Max.Power(kw/rpm) 2.0/8000 3.1/8000 4.1/8000 4.8/8000 5.1/8000 Max. Torque(N.m/rpm) 3.0/6500 4.5/5000 5.8/5000 6.5/5000 7.2/5000 Compression
190CC CDIのガソリン機関横のオイルの涼しい電気手動クラッチ単一シリンダー4打撃
ZS190E 190CC Horizontal Gasoline Engine Oil Cool Electric Start Manual Clutch Details: Technical Parameter Engine Model ZS1P62YML-2 Engine Name W190 Engine Type Single Cylinder, 4 Stroke, Cool cool, Horizontal Displacement(ml) 187.2 Dimension(mm) 460*325*230 Net Weight(kg) 24 Max.Power(kw/rpm) 12/9500 Max. Torque(N.m/rpm) 13/8000 Compression Ratio 11:1 Bore and Stroke(mm) 62*62 Ignition Type CDI Lubrication Type Pressure Splash Min. Fuel Consumption(g/kw.h) ≤367 Starting Type
