| MOQ: | 144 units |
| Price: | Negotiable |
| Standard Packaging: | SKD, CKD |
| Delivery Period: | 20-25 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 10000 unit per year |

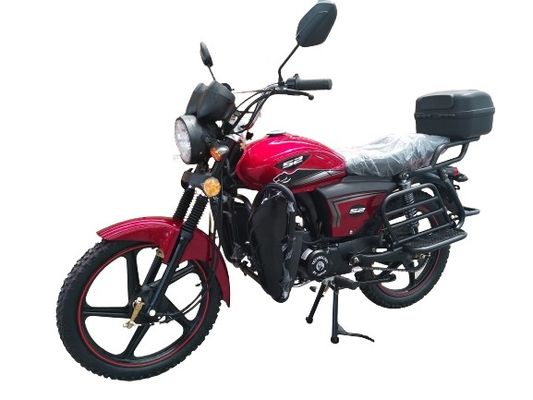

New Alpha F1 Street Motorcycle Big Footrest With Folded Padel 2.50-17/2.75-17 Tyre Manual Clutch
Details:
| MAIN SPECIFICATION | |
| ENGINE | |
| Engine Type: | Single-cylinder,air-cooled, 4-stroke |
| Displacement (ml): | 106.7ml |
| Bore X Stroke (mm): | 52.4*49.5 |
| Compression Ratio: | 9.0:1 |
| Max. Power (kw/r/min) | 5.2/7500 |
| Max. Torque (N.m/r/min): | 7/5000 |
| Max. Speed (Km/h): | ≥90 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch |
| Ignition: | CDI |
| Starting System: | Electric/Kick start |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front shock absorber: | hydraulic pressure and spring |
| Rear shock absorber: | hydraulic pressure and spring |
| Chassis structure: | Steel tube and steel plate,rhombic structure |
| Rear fork: | steel |
| Front Brake: | Disc/Drum Brake |
| Rear Brake: | Drum Brake |
| Front Tire: | 2.50-17 |
| Rear Tire: | 2.75-17 |
| Muffler: | steel |
| Steering Head Angle: | 39/41 |
| Wheel rim | Alloy/Spoke |
| Battery: | 12V5Ah |
| DIMENSIONS | |
| L X W X H (mm): | 1980mmx760mmx1080mm |
| Seat Height (mm): | 845mm |
| Wheelbase (mm): | 1250mm |
| Min. Ground Clearance (mm): | 210mm |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 2 Persons |
| Dry. Weigth (kg): | 85 |
| Fuel Tank Capacity (L): | 14 |
| Packing Size (mm): | 1480×380×860 |
| Packing Weight (kg): | 105 |
Porduct Description:
1. Approved and certificated by third parties such as COC EC.
2. Big rear carrier with big footrest and folded pedal choosing provides convenience for goods transportation. Red rim triple and Haki painting provides more visual options.
3. 1 year or 6000 Km quality guarantee demonstrates our confidence in our products and our commitment to our customers.
4. 144 units SKD packing and 210 sets CKD packing help customers save transportation costs and avoid damage during the transportation.
FAQ:
Q: What configurations are available?
A: MP3, USB, Remote Controller, Alarm.
Q: Can I set my own colors?
A: Customed color and sticker design is accepted.
Q: What are the engine displacements?
A: The engine displacement options are 49CC and 70CC110CC.
Q: What other accessories are available?
A: Rear rack or Small rear carrier or Big rear carrier with big footrest and folded pedal or Front bumper or Tail box.
Q: What are the types of the light?
A: LED light and halogen lamp.
Q: What are the types of the odometer?
A: Digital Odometer and Mechanical Odometer.
Product shows:
