| MOQ: | 96 |
| Price: | Negotiable |
| Standard Packaging: | SKD/CKD |
| Delivery Period: | 40-45 Days |
| Payment Method: | T/T; L/C |
| Supply Capacity: | 10000 Units Per Year |
Factory introduction

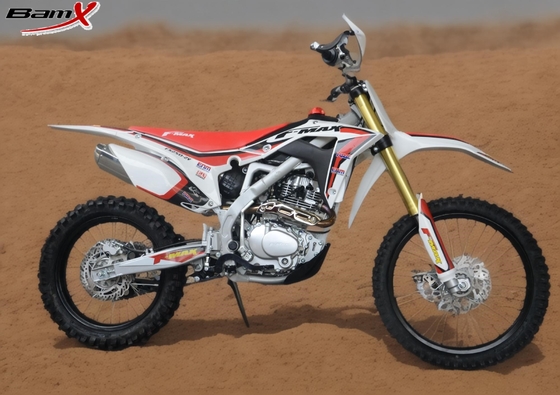

Racing Dual Sport Motorcycle Alloy Fork Invert Shock Absorber Balance Engine
Details:
| MAIN SPECIFICATION |
| Engine | |
| Engine Type: | Single cylinder,air-cooled,four stroke, |
| Displacement (ml): |
223 |
| Bore X Stroke(mm): |
65.5×66.2 |
| Compression Ratio: |
9.25:1 |
| Max. Power (kw/r/min) |
12/7500 |
| Max. Torque (N.m/r/min): |
18/5500 |
| Max. Speed (Km/h): | ≥85 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: |
Electric/Kick Start |
| Transmission System: | Chain drive |
| The left and right steering angle | left 39º right 40º |
| CHASSIS | |
| Front Brake: | disc/drum brake |
| Rear Brake: | disc/drum brake |
| Front Tire: |
3.50-17 |
| Rear Tire: |
4.60-17 |
| Battery: | 12V/7AH |
| DIMENSIONS | |
| L X W X H (mm): |
2000*800*850 |
| Seat Height (mm): | 850 |
| Wheelbase (mm): |
1340mm |
| Min. Ground Clearance(mm): | 200 |
| Max. Permissionable Weight (kg): | 165 |
| Rider Capacity: | 2 Person |
| Dry. Weigth (kg): | 145 |
| Engine Oil (L): | 1L SAE15W/40 |
| Fuel Tank Capacity (L): |
14 |
| Roll angle (°) | 10° |
FAQ:
Q: What configurations are available?
A: MP3, USB, Remote Controller, Alarm.
Q: Can I set my own colors?
A: Customed color and sticker design is accepted.
Q: What are the engine displacements?
A: The engine displacement options are CB250 and CBB250.
Q: What other accessories are available?
A: Rear rack or Small rear carrier.
Q: What are the types of the light?
A: LED light and halogen lamp.
Q: What are the types of the odometer?
A: Digital Odometer and Mechanical Odometer.
Q: What are the types of brakes?
A: Front disc brake or drum brake.
Q: What's the types of shock absorber?
A: Invert shock absorber and normal front shock absorbers.
Product shows:
![]()
![]()
![]()
|
|
